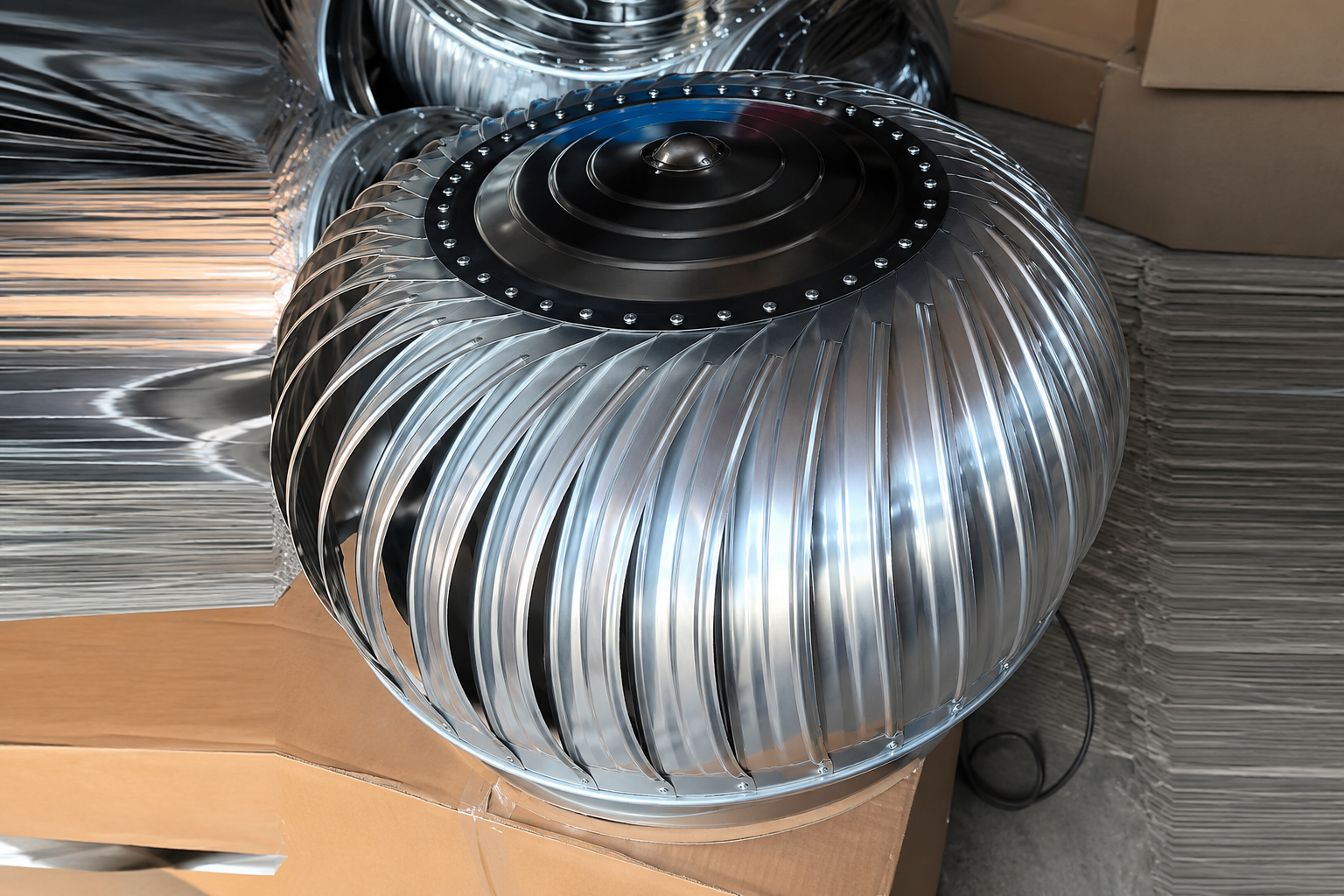

TURBO VENTILATORE AL+SS - 24inch
DOOM/TOP PLATE :-
- Grade :- Stainless steel 202
- Circle Dia :- 16’’
- Thickness :- 0.40mm
FANCE/LEAFE:-
- ALUMINIUM HINDALKO
- Grade - 8011
- Thickness - 0.40MM
- QTY. :- 39 PCS
OUTER MOVING RINGH :-
- Bare Galvalume JSW AZ 150
- Thickness :- 0.50mm
STIPS 6 PCS. WITH MOVING RING :-
- TATA STEEL G P SHEETS
- Thickness :- 1 mm
BEARING PLATES :-
- TATA STEEL GP SHEETS
- Thickness : 0.5mm
Welding Base with Centre Rod 4 strips :-
- TATA STEEL G P SHEETS
- Thickness :- 3mm
- Centre Rod Bright Bar :- 12mm
Bearing:-
- Indian Bearing By Sikheda
- 6001 ZZ - 2 pcs.
Base Ring 100mm:-
- stainless steel magnetic - 410 or 430 Grade
- Thickness :- 0.40mm
Pop- Revit:-
Lock/Circlip:-
Revit:-
- Aluminium Revit Hindalko mfg. By Sikheda
Corrugated Box:-
- Corrugated Box 5 ply - 2.250kgs. Approx
Weight:-
How it works
- Wind spins the vanes: Even light breeze gets the turbo head rotating.
- Creates suction: The spinning creates a vacuum that sucks out hot stale air from inside.
- 24/7 airflow: Works day and night as long as there's some air movement. No motor, no power bill.
- Rain protection: The design keeps rain out while venting air
Where it's used
- Warehouses & factories: Removes heat, fumes, keeps workers cooler.
- Workshops & garages: Exhausts smoke, welding fumes, odors.
- Poultry farms & godowns: Reduces humidity, ammonia buildup.
- Homes: In attics or kitchens to cut heat load.
Key selling points if you're serving them
- Zero operating cost: Wind powered = no electricity.
- Low maintenance: Usually just bearings, lasts years.
- Reduces temperature: Can drop indoor temp by 4-8°C vs outside.
- Prevents roof damage: Removes moisture that causes rust/corrosion.
- Eco friendly: No carbon footprint from running it.

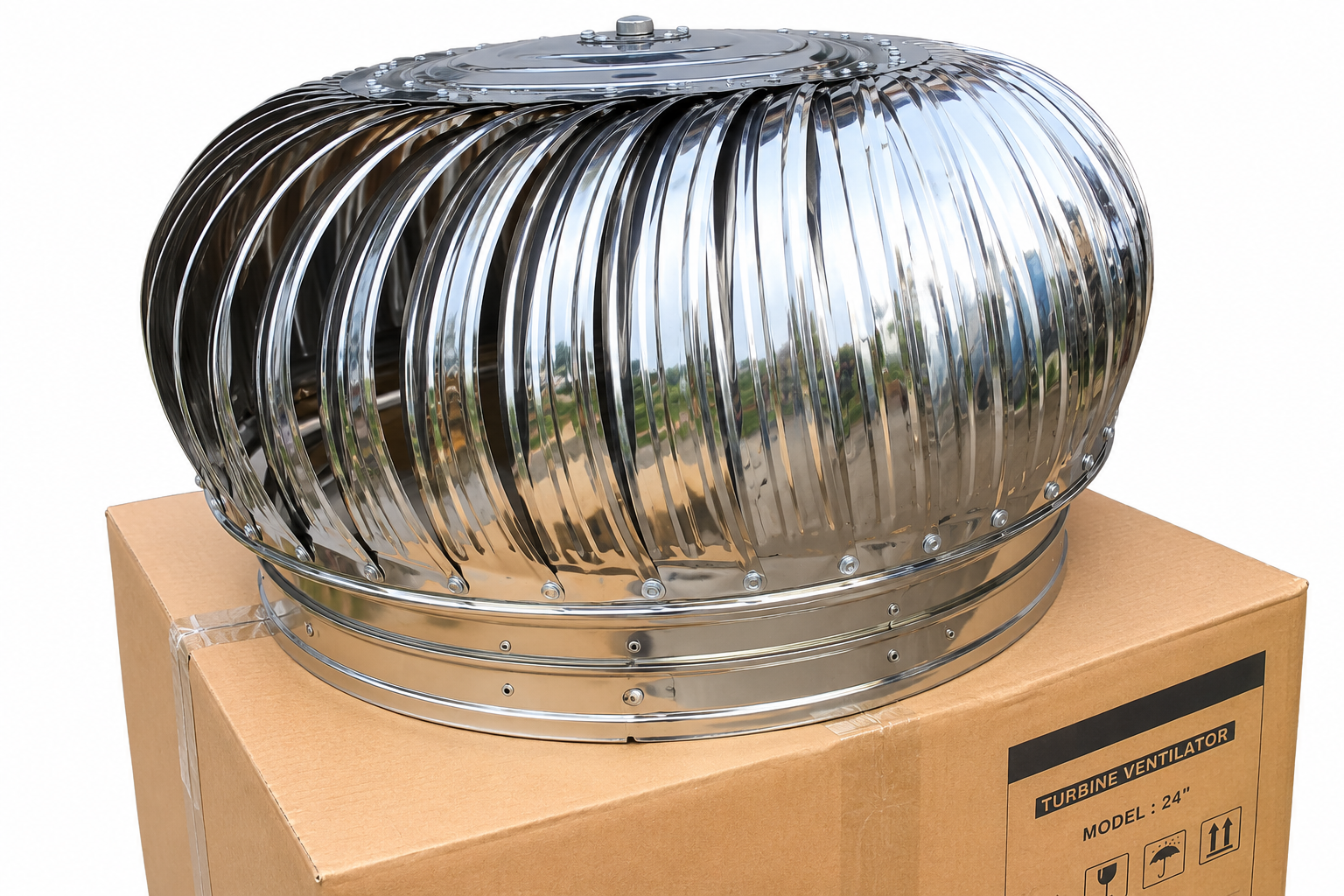

MetroLite TURBO VENTILATORE B-SS - 24inch
DOOM/TOP PLATE :-
- Grade :- Stainless steel 202
- Circle Dia :- 16’’
- Thickness :- 0.40mm
FANCE/LEAFE:-
- Jindal
- Grade - 410 or 430
- Thickness - 0.21mm
- QTY. :- 39 PCS
OUTER MOVING RINGH :-
- Bare Galvalume JSW AZ 150
- Thickness :- 0.50mm
STIPS 6 PCS. WITH MOVING RING :-
- TATA STEEL G P SHEETS
- Thickness :- 1 mm
BEARING PLATES :-
- TATA STEEL GP SHEETS
- Thickness : 0.5mm
Welding Base with Centre Rod 4 strips :-
- TATA STEEL G P SHEETS
- Thickness :- 3mm
- Centre Rod Bright Bar :- 12mm
Bearing:-
- Indian Bearing By Sikheda
- 6001 ZZ - 2 pcs.
Base Ring 100mm:-
- Bare Galvalume - JSW
- Thickness :- 0.50mm
Pop- Revit:-
Lock/Circlip:-
Revit:-
- Aluminium Revit Hindalko mfg. By Sikheda
Corrugated Box:-
Weight:-
How it works
- Wind spins the vanes: Even light breeze gets the turbo head rotating.
- Creates suction: The spinning creates a vacuum that sucks out hot stale air from inside.
- 24/7 airflow: Works day and night as long as there's some air movement. No motor, no power bill.
- Rain protection: The design keeps rain out while venting air
Where it's used
- Warehouses & factories: Removes heat, fumes, keeps workers cooler.
- Workshops & garages: Exhausts smoke, welding fumes, odors.
- Poultry farms & godowns: Reduces humidity, ammonia buildup.
- Homes: In attics or kitchens to cut heat load.
Key selling points if you're serving them
- Zero operating cost: Wind powered = no electricity.
- Low maintenance: Usually just bearings, lasts years.
- Reduces temperature: Can drop indoor temp by 4-8°C vs outside.
- Prevents roof damage: Removes moisture that causes rust/corrosion.
- Eco friendly: No carbon footprint from running it.

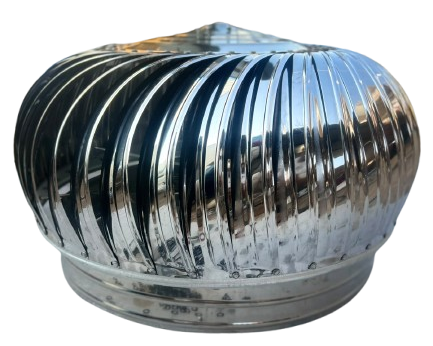

MetroLite TURBO VENTILATORE H-SS - 24inch
DOOM/TOP PLATE :-
- Grade :- Stainless steel 202
- Circle Dia :- 16’’
- Thickness :- 0.40mm
FANCE/LEAFE:-
- Jindal
- Grade - 410 or 430
- Thickness - 0.21mm
- QTY. :- 39 PCS
OUTER MOVING RINGH :-
- Bare Galvalume JSW AZ 150
- Thickness :- 0.50mm
STIPS 6 PCS. WITH MOVING RING :-
- TATA STEEL G P SHEETS
- Thickness :- 1 mm
BEARING PLATES :-
- TATA STEEL GP SHEETS
- Thickness : 0.5mm
Welding Base with Centre Rod 4 strips :-
- TATA STEEL G P SHEETS
- Thickness :- 3mm
- Centre Rod Bright Bar :- 12mm
Bearing:-
- Indian Bearing By Sikheda
- 6001 ZZ - 2 pcs.
Base Ring 100mm:-
- stainless steel magnetic - 410 or 430 Grade
- Thickness :- 0.40mm
Pop- Revit:-
Lock/Circlip:-
Revit:-
- Aluminium Revit Hindalko mfg. By Sikheda
Corrugated Box:-
Weight:-
How it works
- Wind spins the vanes: Even light breeze gets the turbo head rotating.
- Creates suction: The spinning creates a vacuum that sucks out hot stale air from inside.
- 24/7 airflow: Works day and night as long as there's some air movement. No motor, no power bill.
- Rain protection: The design keeps rain out while venting air
Where it's used
- Warehouses & factories: Removes heat, fumes, keeps workers cooler.
- Workshops & garages: Exhausts smoke, welding fumes, odors.
- Poultry farms & godowns: Reduces humidity, ammonia buildup.
- Homes: In attics or kitchens to cut heat load.
Key selling points if you're serving them
- Zero operating cost: Wind powered = no electricity.
- Low maintenance: Usually just bearings, lasts years.
- Reduces temperature: Can drop indoor temp by 4-8°C vs outside.
- Prevents roof damage: Removes moisture that causes rust/corrosion.
- Eco friendly: No carbon footprint from running it.
MetroLite TURBO VENTILATORE SS - 24inch
DOOM/TOP PLATE :-
- Grade :- Stainless steel 202
- Circle Dia :- 16’’
- Thickness :- 0.40mm
FANCE/LEAFE:-
- Jindal
- Grade - 410 or 430
- Thickness - 0.21mm
- QTY. :- 39 PCS
OUTER MOVING RINGH :-
- Bare Galvalume JSW AZ 150
- Thickness :- 0.50mm
STIPS 6 PCS. WITH MOVING RING :-
- TATA STEEL G P SHEETS
- Thickness :- 1 mm
BEARING PLATES :-
- TATA STEEL GP SHEETS
- Thickness : 0.5mm
Welding Base with Centre Rod 4 strips :-
- TATA STEEL G P SHEETS
- Thickness :- 3mm
- Centre Rod Bright Bar :- 12mm
Bearing:-
- Indian Bearing By Sikheda
- 6001 ZZ - 2 pcs.
Base Ring 100mm:-
- stainless steel magnetic - 410 or 430 Grade
- Thickness :- 0.40mm
Pop- Revit:-
Lock/Circlip:-
Revit:-
- Aluminium Revit Hindalko mfg. By Sikheda
Corrugated Box:-
Weight:-
How it works
- Wind spins the vanes: Even light breeze gets the turbo head rotating.
- Creates suction: The spinning creates a vacuum that sucks out hot stale air from inside.
- 24/7 airflow: Works day and night as long as there's some air movement. No motor, no power bill.
- Rain protection: The design keeps rain out while venting air
Where it's used
- Warehouses & factories: Removes heat, fumes, keeps workers cooler.
- Workshops & garages: Exhausts smoke, welding fumes, odors.
- Poultry farms & godowns: Reduces humidity, ammonia buildup.
- Homes: In attics or kitchens to cut heat load.
Key selling points if you're serving them
- Zero operating cost: Wind powered = no electricity.
- Low maintenance: Usually just bearings, lasts years.
- Reduces temperature: Can drop indoor temp by 4-8°C vs outside.
- Prevents roof damage: Removes moisture that causes rust/corrosion.
- Eco friendly: No carbon footprint from running it.
